Usage Guide¶

This guide provides a comprehensive overview of using the dtFFT library to perform parallel data transpositions and optionally Fast Fourier Transforms (FFTs) across host and GPU environments. Designed for high-performance computing, dtFFT simplifies the process of decomposing multidimensional data, managing memory, and executing transformations by integrating with external FFT libraries or operating in Transpose-Only mode.

Whether targeting CPU clusters with MPI or GPU-accelerated systems with CUDA, this library offers flexible configuration options to optimize performance for specific use cases. The following sections detail key aspects of working with dtFFT, from plan creation to execution and resource management, with practical examples in Fortran, C, and C++.

Error Handling and Macros¶

Almost all dtFFT functions return error codes to indicate whether execution was successful. These codes help users identify and handle issues during plan creation, memory allocation, execution, and finalization. The error handling mechanism differs slightly across language APIs:

Fortran API: Functions include an optional error_code parameter (type integer(int32)), always positioned as the last argument. It is always recommended to check the returned error code after each call.
C API: Functions return a value of type dtfft_error_t, allowing direct inspection of the result.
C++ API: Most functions return dtfft::Error. Some overloads throw dtfft::Exception on error instead.

To simplify error checking, dtFFT provides predefined macros that wrap function calls and handle error codes automatically:

Fortran: The DTFFT_CHECK macro, defined in dtfft.f03, checks the error_code and halts execution with an informative message if an error occurs. Include this header with #include "dtfft.f03" to use it. Note: using this macro requires preprocessing.
C: The DTFFT_CALL macro wraps function calls, checks the returned dtfft_error_t, and triggers an appropriate response (printing an error message and exiting) if the call fails.
C++: The DTFFT_CXX_CALL macro similarly wraps calls, throws a C++ exception, and displays an error message.

Below is an example demonstrating error handling with these macros:

#include "dtfft.f03"

...

call plan%execute(a, b, DTFFT_EXECUTE_FORWARD, error_code=error_code)
DTFFT_CHECK(error_code)  ! Halts if error_code != DTFFT_SUCCESS

...

#include <dtfft.h>

...

DTFFT_CALL( dtfft_execute(plan, a, b, DTFFT_EXECUTE_FORWARD, NULL) )

...

#include <dtfft.hpp>

...

DTFFT_CXX_CALL( plan.execute(a, b, dtfft::Execute::FORWARD, nullptr) );

Plan Creation¶

dtFFT supports three plan categories, each tailored to specific transformation requirements:

Real-to-Real (R2R)
Complex-to-Complex (C2C)
Real-to-Complex (R2C)

dtFFT provides two complementary workflows for constructing a plan:

Global-dimension workflow – supply the global lattice extents and allow dtFFT to derive the process decomposition. This workflow is detailed in Global-Dimension Workflow.
Local-decomposition workflow – supply the portion of the domain owned by each MPI rank via a pencil descriptor. This workflow is described in Local-Decomposition Workflow.

Both workflows share the same configuration surface (plan category, precision, executor, and effort level); they differ only in how the data distribution is communicated to the library.

Global-Dimension Workflow¶

This default workflow constructs a plan by providing the global array dimensions (in Fortran order) together with the MPI communicator. dtFFT deduces the process decomposition from that information, optionally complemented by the optimization effort and FFT executor parameters.

Plans are instantiated through the create method or the corresponding language-specific constructor, as described in the Fortran, C, and C++ API sections. Every plan accepts an MPI communicator that defines the process distribution.

When the global-dimension workflow is used, dtFFT must derive how the global domain is partitioned across MPI ranks. The subsections below outline the default strategy and how to supply a custom topology. Users employing the local-decomposition workflow already provide this information explicitly through the pencil descriptor and can skim this section.

Default Behavior

When the communicator passed during plan creation is MPI_COMM_WORLD with $P$ processes, dtFFT attempts the following steps in order:

If $P <= N_z$ (and $N_z / P >= 32$ for the GPU version), split the grid as $N_x \times N_y \times N_z / P$. This distributes the Z-dimension across $P$ processes. Division need not be even, and the local size per process may vary.
If the Z-split fails (e.g., $P > N_z$ or $N_z / P < 32$ on GPU), attempt $N_x \times N_y / P \times N_z$. This distributes the Y-dimension across P processes, provided $P \le N_x$ to remain compatible with future transpositions (e.g., Y-to-X, which results in $N_y \times N_z \times N_x / P$).
If both attempts fail, dtFFT constructs a 3D communicator by fixing the X-dimension split to 1 and using MPI_Dims_create(P, 2, dims) to balance the remaining $P$ processes across $Y$ and $Z$, resulting in $N_x \times N_y / P_1 \times N_z / P_2$ (where $P_1 \times P_2 = P$).
If this 3D decomposition is not viable (e.g., $N_y < P_1$ or $N_z < P_2$), dtFFT proceeds but prints a warning message. Ensure DTFFT_ENABLE_LOG is enabled to observe it.

User-Controlled Decomposition

Applications may supply a communicator with an attached Cartesian topology. Grid dimensions must be provided in Fortran order (X, Y, Z).

1D Communicator: A one-dimensional communicator with $P$ processes splits the grid as $N_x \times N_y \times N_z / P$, distributing the Z-dimension across $P$ processes.
2D Communicator: A two-dimensional communicator with topology $P_1 \times P_2$ (where $P_1 * P_2 = P$) decomposes the grid as $N_x \times N_y / P_1 \times N_z / P_2$, splitting $Y$ by $P_1$ and $Z$ by $P_2$ while keeping $X$ indivisible.
3D Communicator: A three-dimensional communicator with topology $P_0 \times P_1 \times P_2$ (where $P_0 * P_1 * P_2 = P$) is supported, but $P_0$ (the X split) must be 1 to preserve the fastest-varying dimension. Violating this constraint triggers DTFFT_ERROR_INVALID_COMM_FAST_DIM.

The example below illustrates the global-dimension workflow by creating a 3D C2C double-precision Transpose-Only plan:

#include "dtfft.f03"
! dtfft.f03 contains macro DTFFT_CHECK
use iso_fortran_env
use dtfft
use mpi ! or use mpi_f08

type(dtfft_plan_c2c_t) :: plan
integer(int32) :: dims(3)
integer(int32) :: error_code
type(dtfft_effort_t) :: effort = DTFFT_PATIENT
type(dtfft_precision_t) :: precision = DTFFT_DOUBLE
type(dtfft_executor_t) :: executor = DTFFT_EXECUTOR_NONE

call MPI_Init()

! Set dimensions
dims = [32, 32, 32]

! Creating plan with create method
call plan%create(dims, MPI_COMM_WORLD, precision, effort, executor, error_code)
DTFFT_CHECK(error_code)

#include <dtfft.h>
#include <mpi.h>

int main(int argc, char *argv[]) {
  dtfft_plan_t plan;
  int32_t dims[3] = {32, 32, 32};

  MPI_Init(&argc, &argv);

  // Creating plan
  DTFFT_CALL( dtfft_create_plan_c2c(3, dims, MPI_COMM_WORLD, DTFFT_DOUBLE, DTFFT_PATIENT, DTFFT_EXECUTOR_NONE, &plan) );

  return 0;
}

#include <dtfft.hpp>
#include <mpi.h>
#include <vector>

int main(int argc, char *argv[]) {
  MPI_Init(&argc, &argv);

  const std::vector<int32_t> dims = {32, 32, 32};
  dtfft::Precision precision = dtfft::Precision::DOUBLE;
  dtfft::Effort effort = dtfft::Effort::PATIENT;
  dtfft::Executor executor = dtfft::Executor::NONE;

  // Creating plan with constructor
  dtfft::PlanC2C plan(dims, MPI_COMM_WORLD, precision, effort, executor);

  // OR use generic interface
  // dtfft::PlanC2C plan(dims.size(), dims.data(), MPI_COMM_WORLD, precision, effort, executor);

  return 0;
}

Local-Decomposition Workflow¶

The alternative workflow constructs a plan from a user-defined pencil decomposition. Instead of supplying global dimensions, the application provides, for each MPI rank, the starting indices and extents of the local sub-domain. This workflow affords full control over data locality and aligns dtFFT with pre-existing domain decompositions.

Use this approach when you need to:

Reuse a decomposition generated by another solver or library.
Guarantee specific locality constraints (for example, to co-locate data with accelerators or I/O tasks).
Persist a previously tuned decomposition and avoid re-running autotuning logic.
Utilize brick data decomposition, where data is distributed across all dimensions (2 dimensions for 2D plans, 3 dimensions for 3D plans), unlike pencil decomposition which distributes across 2 dimensions (keeping one dimension local).

Both constructors and create methods accept the dtfft_pencil_t descriptor. The descriptor stores the dimensionality, the local starting indices (0-based), and the counts along each dimension.

The example below decomposes a $64 \times 64 \times 64$ grid by splitting only along the slowest (Z) dimension. Each rank describes its local block and then creates a plan using the pencil descriptor.

#include "dtfft.f03"
use iso_fortran_env
use dtfft
use mpi

type(dtfft_plan_c2c_t) :: plan
type(dtfft_pencil_t) :: my_pencil
integer(int32) :: error_code
integer(int32) :: starts(3), counts(3)
integer :: rank, size, ierr

call MPI_Init(ierr)
call MPI_Comm_rank(MPI_COMM_WORLD, rank, ierr)
call MPI_Comm_size(MPI_COMM_WORLD, size, ierr)

starts = [0, 0, rank * (64 / size)]
counts = [64, 64, 64 / size]

my_pencil = dtfft_pencil_t(starts, counts)

call plan%create(my_pencil, MPI_COMM_WORLD, DTFFT_DOUBLE, DTFFT_ESTIMATE, DTFFT_EXECUTOR_NONE, error_code)
DTFFT_CHECK(error_code)

#include <dtfft.h>
#include <mpi.h>

int main(int argc, char *argv[]) {
  dtfft_plan_t plan;
  dtfft_pencil_t pencil;
  int rank, size;

  MPI_Init(&argc, &argv);
  MPI_Comm_rank(MPI_COMM_WORLD, &rank);
  MPI_Comm_size(MPI_COMM_WORLD, &size);

  pencil.ndims = 3;
  pencil.starts[0] = 0;
  pencil.starts[1] = 0;
  pencil.starts[2] = rank * (64 / size);
  pencil.counts[0] = 64;
  pencil.counts[1] = 64;
  pencil.counts[2] = 64 / size;

  DTFFT_CALL( dtfft_create_plan_c2c_pencil(&pencil, MPI_COMM_WORLD,
                DTFFT_DOUBLE, DTFFT_ESTIMATE, DTFFT_EXECUTOR_NONE, &plan) );

  return 0;
}

#include <dtfft.hpp>

int main(int argc, char *argv[]) {
  MPI_Init(&argc, &argv);

  int rank, size;
  MPI_Comm_rank(MPI_COMM_WORLD, &rank);
  MPI_Comm_size(MPI_COMM_WORLD, &size);

  std::vector<int32_t> starts = {0, 0, rank * (64 / size)};
  std::vector<int32_t> counts = {64, 64, 64 / size};

  auto pencil = dtfft::Pencil(starts, counts);

  dtfft::PlanC2C plan(pencil, MPI_COMM_WORLD, dtfft::Precision::DOUBLE,
                      dtfft::Effort::ESTIMATE, dtfft::Executor::NONE);

  return 0;
}

Bricks decomposition¶

For 2D and 3D plans, a common special case of the local-decomposition workflow is a brick layout where each MPI rank owns a sub-domain of the global domain.

3D case. Assume the global domain is $N_x \times N_y \times N_z$ and ranks are arranged as $P_0 \times P_1 \times P_2$.

Let the local brick on each rank be

\[(N_x / P_0) \times n_y \times n_z, \quad n_y = N_y / P_1, \quad n_z = N_z / P_2.\]

To execute FFTs along the fastest-varying dimension (X), the data must be realigned into X-pencils. This requires gathering data from all $P_0$ bricks along the X dimension to reconstruct the full $N_x$ extent, while the $P_0$ processes are redistributed across the $Y$ and/or $Z$ dimensions. Inside dtFFT this operation is called reshape. dtFFT attempts the following reshape strategies in order:

$N_x \times n_y \times (n_z / P_0)$ — gather full X dimension, redistribute $P_0$ processes along Z (keeping Y local)
$N_x \times (n_y / P_0) \times n_z$ — gather full X dimension, redistribute $P_0$ processes along Y (keeping Z local)

If neither strategy is feasible (i.e. $n_y < P_0$ or $n_z < P_0$), dtFFT falls back to a 2D redistribution of the $P_0$ ranks by choosing $Q_1 \times Q_2$ such that $Q_1 Q_2 = P_0$, and uses:

\[N_x \times (n_y / Q_1) \times (n_z / Q_2).\]

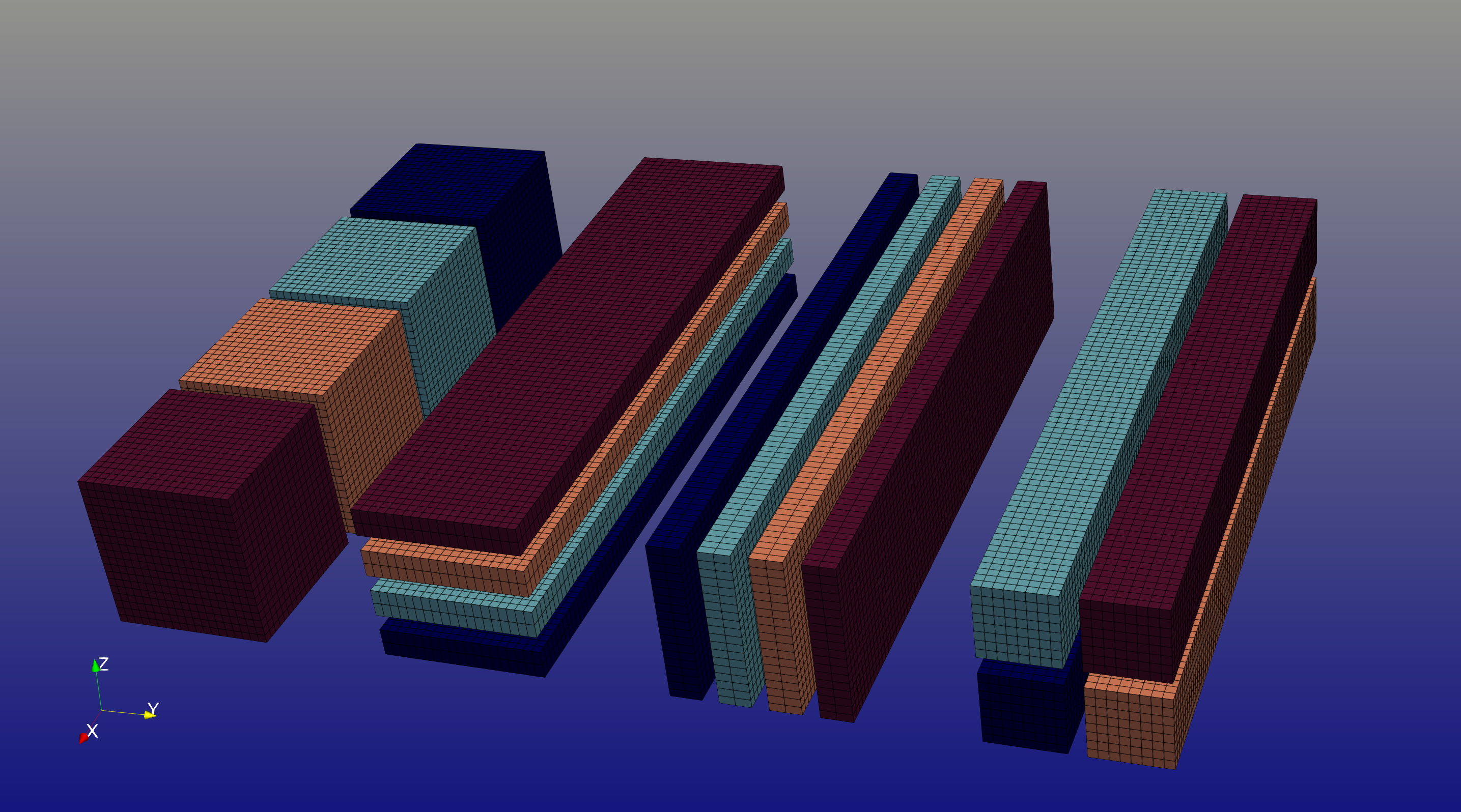

The figure below illustrates the three reshape strategies for bricks in 3D. The leftmost layout shows the initial brick decomposition with $P_0 = 4$ ranks along the $X$ dimension. The next three layouts show the resulting pencil decompositions after applying each reshape strategy: splitting along $Z$ (strategy 1), splitting along $Y$ (strategy 2), and the 2D split with $Q_1 = Q_2 = 2$ (strategy 3). Each colored block represents data from one rank, and the figure shows a single slice corresponding to one of the $P_1 \times P_2$ positions. The reshape strategy is selected on rank 0 based on divisibility constraints and performance considerations, then broadcasted to all other ranks.

2D case. Assume the global domain is $N_x \times N_y$ and ranks are arranged as $P_0 \times P_1$. Let the local block be $(N_x / P_0) \times n_y$, where $n_y = N_y / P_1$. In this case, dtFFT attempts to redistribute across the $P_0$ ranks (keeping $n_y$ fixed) as:

$N_x \times (n_y / P_0)$

Note

By default, execute() does not reshape data from pencils to bricks in Fourier space. To enable, set enable_fourier_reshape field of dtfft_config_t to true.

User-controlled redistribution¶

As in the global-dimension workflow, users can influence how the redistribution is performed by passing an MPI communicator with an attached Cartesian topology during plan creation.

1D communicator: redistributes the $P_0$ processes by splitting the last dimension.
2D communicator:
- For 3D data, redistributes across the $Y$ and $Z$ directions.
- For 2D data, the split along the first (X) dimension must be 1 (to preserve the fastest-varying dimension).
3D communicator: supported for 3D data only; the split along the $X$ dimension must be 1.

For 3D data, additional consistency constraints apply. Let the Cartesian communicator have $R_1$ and $R_2$ processes in the $Y$ and $Z$ directions. Then:

$R_1 \ge P_1$ and $R_2 \ge P_2$
Define $r_1 = R_1 / P_1$ and $r_2 = R_2 / P_2$ (integers). The redistribution must satisfy $r_1 r_2 = P_0$.

Slab Optimizations¶

dtFFT supports two slab optimizations that can reduce the number of data transpositions during plan execution by employing two-dimensional FFT algorithms where applicable. These optimizations are controlled via the dtfft_config_t structure or corresponding environment variables.

Z-Slab Optimization¶

When the grid is decomposed as $N_x \times N_y \times N_z / P$, the Z-slab optimization becomes available. If enabled (default), it reduces the number of data transpositions by employing a two-dimensional FFT algorithm along the X and Y dimensions during calls to execute(). This also enables DTFFT_TRANSPOSE_X_TO_Z and DTFFT_TRANSPOSE_Z_TO_X in transpose(), while other transpose types remain available.

This optimization can be disabled through the enable_z_slab field in dtfft_config_t or the DTFFT_ENABLE_Z_SLAB environment variable. It cannot be forced when the decomposition is incompatible with Z-slab requirements. Consider disabling it to resolve DTFFT_ERROR_VKFFT_R2R_2D_PLAN errors or when the underlying 2D FFT implementation is too slow. In all other cases, Z-slab is considered faster.

Y-Slab Optimization¶

When the grid is decomposed as $N_x \times N_y / P \times N_z$, the Y-slab optimization can be enabled. If enabled (disabled by default), dtFFT will skip the transpose step between Y-aligned and Z-aligned layouts during calls to execute(), employing a two-dimensional FFT algorithm along the Y and Z dimensions instead.

This optimization can be enabled through the enable_y_slab field in dtfft_config_t. Consider disabling it when the underlying 2D FFT implementation is too slow.

Precision and FFT Executor¶

Two parameters govern the numerical representation and FFT backend selection:

Precision (dtfft_precision_t):
- DTFFT_SINGLE – single precision
- DTFFT_DOUBLE – double precision
FFT Executor (dtfft_executor_t):
- DTFFT_EXECUTOR_NONE – Transpose-Only (no FFT)
- DTFFT_EXECUTOR_FFTW3 – FFTW3 (host only, available when compiled with FFTW3 support)
- DTFFT_EXECUTOR_MKL – MKL DFTI (host only, available when compiled with MKL support)
- DTFFT_EXECUTOR_CUFFT – cuFFT (GPU only, available when compiled with CUDA support)
- DTFFT_EXECUTOR_VKFFT – VkFFT (GPU only, available when compiled with VkFFT support)

Selecting plan effort¶

The effort parameter in dtFFT determines the level of optimization applied during plan creation, influencing how data transposition is configured. The choice of effort impacts both plan creation time and runtime performance. Higher effort levels increase setup time but can enhance transposition efficiency, especially for large datasets or complex grids. The supported effort levels defined by dtfft_effort_t control the extent of this optimization as follows:

DTFFT_ESTIMATE¶

This minimal-effort option prioritizes fast plan creation.

On the host, dtFFT selects a default grid decomposition. If the selected backend is DTFFT_BACKEND_MPI_DATATYPE, it constructs MPI datatypes based on environment variables such as DTFFT_DTYPE_X_Y and DTFFT_DTYPE_Y_Z (see MPI Datatype Selection variables), which define the default send and receive strategies.

DTFFT_MEASURE¶

With this moderate-effort setting, dtFFT explores multiple grid decomposition strategies to reduce communication overhead during transposition, cycling through possible grid layouts to find an efficient configuration. On the host, it uses the same MPI datatypes as defined by environment variables in DTFFT_ESTIMATE. On the GPU, it employs the same backend as specified in the configuration for DTFFT_ESTIMATE.

If a Cartesian communicator is provided or plan is being created using dtfft_pencil_t structure, it reverts to DTFFT_ESTIMATE behavior, relying on the user-specified topology.

DTFFT_PATIENT¶

This effort option extends DTFFT_MEASURE by selecting the best-performing communication backend for All-to-All communications.

DTFFT_EXHAUSTIVE¶

This maximum-effort option extends DTFFT_PATIENT by including kernel autotuning (both host and GPU, depending on the execution platform) and selecting the best-performing backend for reshape operations.

Note

Kernel autotuning can be enabled with all efforts below DTFFT_EXHAUSTIVE by setting the enable_kernel_autotune field of dtfft_config_t to true or using the DTFFT_ENABLE_KERNEL_AUTOTUNE environment variable.

Setting Additional Configurations¶

The dtfft_config_t type allows users to set additional configuration parameters for dtFFT before plan creation, tailoring its behavior to specific needs. These settings are optional and can be applied using the constructor dtfft_config_t() or the dtfft_create_config() function, followed by a call to dtfft_set_config().

Configurations must be set prior to creating a plan to take effect. The available parameters are summarized below:

Configuration parameters¶
Field	Type / Enum	Default	CUDA	Description
`enable_log`	logical	`.false.`		Enable autotuning / selection logging (errors are always printed regardless).
`enable_z_slab`	logical	`.true.`		Enable Z-slab optimization (fewer transfers, enables X↔Z transpose path). Disable to work around 2D FFT issues (e.g. `DTFFT_ERROR_VKFFT_R2R_2D_PLAN`).
`enable_y_slab`	logical	`.false.`		Enable Y-slab optimization (fewer transfers). Disable to work around 2D FFT issues.
`n_measure_warmup_iters`	integer	`2`		Number of warmup iterations during autotune when effort > `DTFFT_ESTIMATE`.
`n_measure_iters`	integer	`5`		Number of measured iterations during autotune when effort > `DTFFT_ESTIMATE`.
`platform`	`dtfft_platform_t`	`DTFFT_PLATFORM_HOST`	✓	Execution platform (HOST / CUDA). Available only when built with CUDA. When `dtFFT` is built with CUDA support, users can create either HOST or CUDA plans.
`stream`	`dtfft_stream_t`	(internal)	✓	Custom CUDA stream override (user destroys it after plan). Otherwise internally managed.
`backend`	`dtfft_backend_t`	differs between HOST / CUDA		Backend used for `DTFFT_ESTIMATE` / `DTFFT_MEASURE`. Default is `DTFFT_BACKEND_MPI_DATATYPE` when executed on host. When executed on GPU, the default is `DTFFT_BACKEND_NCCL` if available; otherwise it falls back to `DTFFT_BACKEND_MPI_P2P`.
`reshape_backend`	`dtfft_backend_t`	differs between HOST / CUDA		Backend used for reshape operations when `effort` is below `DTFFT_EXHAUSTIVE`. Default is same as `backend`.
`enable_datatype_backend`	logical	`.true.`		Allow MPI datatype backend during autotuning on host.
`enable_mpi_backends`	logical	`.false.`		Allow MPI backends (P2P, A2A, etc.) to be tested during backend autotune.
`enable_pipelined_backends`	logical	`.true.`		Allow pipelined backends to be tested during backend autotune.
`enable_nccl_backends`	logical	`.true.`	✓	Allow NCCL-based backends to be tested during backend autotune.
`enable_nvshmem_backends`	logical	`.true.`	✓	Allow NVSHMEM-enabled backends to be tested during backend autotune.
`enable_kernel_autotune`	logical	`.false.`		Enable kernel autotuning for effort levels below `DTFFT_EXHAUSTIVE`. Always enabled for `DTFFT_EXHAUSTIVE`.
`enable_fourier_reshape`	logical	`.false.`		Execute reshapes from pencils to bricks in Fourier space during calls to `execute()`.

Note

Fields marked “CUDA” are available only if the library was compiled with CUDA (DTFFT_WITH_CUDA).

Note

Almost all values can be overridden at runtime by setting the appropriate environment variable, which takes precedence if set. Refer to Environment Variables section.

The following example creates a config object, disables Z-slab, enables MPI backends, and sets a custom stream:

use cudafor
use dtfft

integer(cuda_stream_kind) :: my_stream
type(dtfft_config_t) :: config
integer :: ierr

! Create config with default values
config = dtfft_config_t()

! Disable Z-slab optimization
config%enable_z_slab = .false.

! Enable MPI backends for autotuning
config%enable_mpi_backends = .true.

! Create and set custom CUDA stream
ierr = cudaStreamCreate(my_stream)
config%stream = dtfft_stream_t(my_stream)

! Apply configuration
call dtfft_set_config(config)

! Now we can create a plan

#include <cuda_runtime.h>
#include <dtfft.h>

cudaStream_t my_stream;
dtfft_config_t config;

// Create config with default values
dtfft_create_config(&config);

// Disable Z-slab optimization
config.enable_z_slab = 0;

// Enable MPI backends for autotuning
config.enable_mpi_backends = 1;

// Create and set custom CUDA stream
cudaStreamCreate(&my_stream);
config.stream = (dtfft_stream_t)my_stream;

// Apply configuration
dtfft_set_config(&config);

// Now we can create a plan

#include <cuda_runtime.h>
#include <dtfft.hpp>

cudaStream_t my_stream;
dtfft::Config config;  // Automatically fills with default values

// Disable Z-slab optimization
config.set_enable_z_slab(false);

// Enable MPI backends for autotuning
config.set_enable_mpi_backends(true);

// Create and set custom CUDA stream
cudaStreamCreate(&my_stream);
config.set_stream((dtfft_stream_t)my_stream);

// Apply configuration
dtfft::set_config(config);

// Now we can create a plan

Memory Allocation¶

After a plan is created, users may need to determine the memory required to execute it.

The plan method get_local_sizes() retrieves the number of elements in “real” and “Fourier” spaces and the minimum number of elements that must be allocated:

in_starts: Start indices of the local data portion in real-space (0-based)
in_counts: Number of elements in the local data portion in real-space
out_starts: Start indices of the local data portion in Fourier-space (0-based)
out_counts: Number of elements in the local data portion in Fourier-space
alloc_size: Minimum number of elements needed for in and out buffers

Note

If Y-slab optimization is enabled (see get_y_slab_enabled()), the Fourier-space layout is Y-aligned instead of Z-aligned, and out_* values reflect the Y-aligned layout.

Arrays in_starts, in_counts, out_starts, and out_counts must have at least as many elements as the plan’s dimensions.

The minimum number of bytes required for each buffer is alloc_size * element_size. The element_size can be obtained by get_element_size() which returns:

C2C: 2 * sizeof(double) = 16 bytes (double precision) or 2 * sizeof(float) = 8 bytes (single precision)
R2R and R2C: sizeof(double) = 8 bytes (double precision) or sizeof(float) = 4 bytes (single precision)

integer(int64) :: alloc_size, element_size

! Get number of elements
call plan%get_local_sizes(alloc_size=alloc_size)

! OR use convenient wrapper
! alloc_size = plan%get_alloc_size()

! Optionally get element size in bytes
element_size = plan%get_element_size()

size_t alloc_size;

// Get number of elements
dtfft_get_local_sizes(plan, NULL, NULL, NULL, NULL, &alloc_size);

// OR use convenient wrapper
// dtfft_get_alloc_size(plan, &alloc_size);

// Optionally get element size in bytes
size_t element_size;
dtfft_get_element_size(plan, &element_size);

size_t alloc_size;

// Get number of elements
DTFFT_CXX_CALL( plan.get_local_sizes(nullptr, nullptr, nullptr, nullptr, &alloc_size) );

// OR use wrapper
DTFFT_CXX_CALL( plan.get_alloc_size(&alloc_size) );

// OR use even more convenient wrapper
auto alloc_size = plan.get_alloc_size();

// Optionally get element size in bytes
size_t element_size;
DTFFT_CXX_CALL( plan.get_element_size(&element_size) );

// OR use convenient wrapper
auto element_size = plan.get_element_size();

Note that get_local_sizes() does not describe intermediate pencil layouts. For both 2D and 3D plans, detailed layout information can be retrieved via the pencil interface (see Retrieving memory layouts (Pencils) below).

The dtFFT library provides functions to allocate and free memory tailored to the plan:

mem_alloc(): Allocates memory.
mem_free(): Frees memory allocated by mem_alloc().

Fortran interface provides additional methods for memory allocation and deallocation:

mem_alloc_ptr(): Allocates memory and returns a pointer of type c_ptr.
mem_free_ptr(): Frees memory allocated by mem_alloc_ptr().

Host Version¶

Allocates memory based on the dtfft_executor_t:

fftw_malloc for FFTW3
mkl_malloc for MKL DFT
aligned_alloc (16-byte alignment) from the C11 standard library for transpose-only plans.

GPU Version¶

Allocates memory based on the dtfft_backend_t:

ncclMemAlloc for NCCL (if available)
nvshmem_malloc for NVSHMEM-based backends
cudaMalloc otherwise.

If NCCL is used and supports buffer registration via ncclCommRegister, and the environment variable DTFFT_NCCL_BUFFER_REGISTER is not set to 0, the allocated buffer will also be registered. This registration optimizes communication performance by reducing the overhead of memory operations, which is particularly beneficial for workloads with repeated communication patterns.

use iso_fortran_env

! Host version
complex(real64), pointer :: a(:), b(:), aux(:)
! CUDA Fortran version
complex(real64), device, contiguous, pointer :: a(:), b(:), aux(:)

! Allocates memory
call plan%mem_alloc(alloc_size, a, error_code=error_code); DTFFT_CHECK(error_code)
call plan%mem_alloc(alloc_size, b, error_code=error_code); DTFFT_CHECK(error_code)
call plan%mem_alloc(alloc_size, aux, error_code=error_code); DTFFT_CHECK(error_code)

! or use pointers of type c_ptr
use iso_c_binding

type(c_ptr) :: a_ptr, b_ptr, aux_ptr
integer(int64) :: alloc_bytes

alloc_bytes = alloc_size * element_size
a_ptr = plan%mem_alloc_ptr(alloc_bytes, error_code=error_code); DTFFT_CHECK(error_code)
b_ptr = plan%mem_alloc_ptr(alloc_bytes, error_code=error_code); DTFFT_CHECK(error_code)
aux_ptr = plan%mem_alloc_ptr(alloc_bytes, error_code=error_code); DTFFT_CHECK(error_code)

size_t alloc_bytes = alloc_size * element_size;
double *a, *b, *aux;

DTFFT_CALL( dtfft_mem_alloc(plan, alloc_bytes, (void**)&a) );
DTFFT_CALL( dtfft_mem_alloc(plan, alloc_bytes, (void**)&b) );
DTFFT_CALL( dtfft_mem_alloc(plan, alloc_bytes, (void**)&aux) );

#include <complex>

size_t alloc_bytes = alloc_size * element_size;
std::complex<double> *a;

// C-like way of memory allocation
DTFFT_CXX_CALL( plan.mem_alloc(alloc_bytes, reinterpret_cast<void**>(&a)) );

// C++ way, note that this way may throw dtfft::Exception on error
// Note that number of elements is passed here instead of bytes
// Size of each element is defined by template argument
auto b = plan.mem_alloc<std::complex<double>>(alloc_size);
auto aux = plan.mem_alloc<std::complex<double>>(alloc_size);

Note

Memory allocated with mem_alloc() must be deallocated with mem_free() before the plan is destroyed to avoid memory leaks.

Retrieving memory layouts (Pencils)¶

For detailed layout information in 2D and 3D plans, use the get_pencil() method. The requested layout is selected via dtfft_layout_t (Fortran/C) or dtfft::Layout (C++).

Supported layouts are:

DTFFT_LAYOUT_X_BRICKS: X-brick layout (available only for plans that support reshape, i.e., bricks-decomposition plans).
DTFFT_LAYOUT_Z_BRICKS: Z-brick layout (available only for plans that support reshape, i.e., bricks-decomposition plans).
DTFFT_LAYOUT_X_PENCILS: X-pencil layout in real-space.
DTFFT_LAYOUT_X_PENCILS_FOURIER: X-pencil layout in Fourier-space for R2C plans.
DTFFT_LAYOUT_Y_PENCILS: Y-pencil layout.
DTFFT_LAYOUT_Z_PENCILS: Z-pencil layout (3D plans only).

DTFFT_LAYOUT_X_PENCILS_FOURIER is meaningful only for R2C plans: it describes the distribution and local extents of the Fourier-space X-pencil representation (which differs from real-space X-pencils due to reduced extent along the transformed dimension). For non-R2C plans, requesting this layout returns DTFFT_ERROR_INVALID_LAYOUT.

This call returns a dtfft_pencil_t structure containing:

dim: Aligned dimension ID (1 for X, 2 for Y, 3 for Z).
ndims: Number of dimensions in the pencil (2 or 3)
starts: Local start indices (0-based) in natural Fortran order. In C/C++, the array starts[3] always has size 3, but only the first ndims elements contain valid data.
counts: Local element counts (in elements) in natural Fortran order. In C/C++, the array counts[3] always has size 3, but only the first ndims elements contain valid data.
size: Total number of elements in a pencil

type(dtfft_pencil_t) :: x_pencil, y_pencil, z_pencil

x_pencil = plan%get_pencil(DTFFT_LAYOUT_X_PENCILS, error_code); DTFFT_CHECK(error_code)
y_pencil = plan%get_pencil(DTFFT_LAYOUT_Y_PENCILS, error_code); DTFFT_CHECK(error_code)
z_pencil = plan%get_pencil(DTFFT_LAYOUT_Z_PENCILS, error_code); DTFFT_CHECK(error_code)

! Access pencil properties, e.g., x_pencil%dim, x_pencil%starts

dtfft_pencil_t x_pencil, y_pencil, z_pencil;

DTFFT_CALL( dtfft_get_pencil(plan, DTFFT_LAYOUT_X_PENCILS, &x_pencil) );
DTFFT_CALL( dtfft_get_pencil(plan, DTFFT_LAYOUT_Y_PENCILS, &y_pencil) );
DTFFT_CALL( dtfft_get_pencil(plan, DTFFT_LAYOUT_Z_PENCILS, &z_pencil) );

// Access pencil properties, e.g., x_pencil.dim, x_pencil.starts

auto x_pencil = plan.get_pencil(dtfft::Layout::X_PENCILS); // throws dtfft::Exception on error
auto y_pencil = plan.get_pencil(dtfft::Layout::Y_PENCILS);
auto z_pencil = plan.get_pencil(dtfft::Layout::Z_PENCILS);

// Access pencil properties, e.g., x_pencil.get_dim(), x_pencil.get_starts()

Plan Execution¶

There are three primary methods to execute a plan in dtFFT: execute, transpose, and reshape. The first performs the full workflow, while the others are useful for custom workflows that require only data transposition or reshaping (for example, when using an external FFT library).

Note

On a CUDA platform, all plan execution functions operate asynchronously. When a function returns, work is queued in a CUDA stream but may not be complete. Full synchronization with the host requires calling cudaDeviceSynchronize, cudaStreamSynchronize, or !$acc wait (for OpenACC). During execution, dtFFT may use multiple CUDA streams, but the final stage always occurs in the stream returned by get_stream(). Thus, synchronization may be unnecessary if users submit additional kernels to that stream.

Execute¶

This method executes a plan by optionally reshaping data from bricks to pencils (and vice versa), transposing data between pencils, and optionally performing FFTs based on the specified execute_type. It supports in-place execution; the same pointer can be safely passed to both in and out. To optimize memory usage, dtFFT uses the in buffer as intermediate storage, overwriting its contents. Users needing to preserve original data should copy it elsewhere.

Supported execute_type values are:

DTFFT_EXECUTE_FORWARD: Forward execution, transforming data from real-space to Fourier-space.
DTFFT_EXECUTE_BACKWARD: Backward execution, transforming data from Fourier-space to real-space.

Note

For Transpose-Only plans with a Z-slab and identical in and out pointers, execution uses a two-step transposition, as direct transposition is not possible with a single pointer.

Note

These are the only cases when in-place execution is not allowed:

2D Transpose-Only plan

3D Transpose-Only with Y-slab optimization enabled.

Transpose-Only plan with bricks decomposition and enable_fourier_reshape attribute in dtfft_config_t set to false.

Note

Calling execute() on a Transpose-Only R2C plan is not allowed.

Example¶

Below is an example of executing a plan forward and backward:

! Assuming a 3D FFT plan is created and buffers `a`, `b`, and `aux` are allocated
call plan%execute(a, b, DTFFT_EXECUTE_FORWARD, aux, error_code)
DTFFT_CHECK(error_code)  ! Checks for execution errors

! Process Fourier-space data in buffer `b`
! ... (e.g., apply filtering)

! Backward execution
call plan%execute(b, a, DTFFT_EXECUTE_BACKWARD, aux, error_code)
DTFFT_CHECK(error_code)

! Alternatively, using pointers of type c_ptr. If aux is not needed, pass c_null_ptr
call plan%execute_ptr(a_ptr, b_ptr, DTFFT_EXECUTE_FORWARD, aux_ptr, error_code)
DTFFT_CHECK(error_code)

! ...

call plan%execute_ptr(b_ptr, a_ptr, DTFFT_EXECUTE_BACKWARD, c_null_ptr, error_code)
DTFFT_CHECK(error_code)

// Assuming a 3D FFT plan is created and buffers `a`, `b`, and `aux` are allocated
DTFFT_CALL( dtfft_execute(plan, a, b, DTFFT_EXECUTE_FORWARD, aux) )

// Process Fourier-space data in buffer `b`
// ... (e.g., apply filtering)

// Backward execution
DTFFT_CALL( dtfft_execute(plan, b, a, DTFFT_EXECUTE_BACKWARD, aux) )

// Assuming a 3D FFT plan is created and buffers `a`, `b`, and `aux` are allocated
DTFFT_CXX_CALL( plan.execute(a, b, dtfft::Execute::FORWARD, aux) )

// Process Fourier-space data in buffer `b`
// ... (e.g., apply filtering)

// Backward execution
DTFFT_CXX_CALL( plan.execute(b, a, dtfft::Execute::BACKWARD, aux) )

Transpose¶

This method executes a single data transposition between different pencil layouts (e.g., X-aligned to Y-aligned), writing the result into the out buffer. There are two ways to invoke it: synchronously by calling transpose() directly, or as a split-phase operation by calling transpose_start() followed by transpose_end() (managed via a dtfft_request_t handle).

The split-phase API is primarily useful for host plans with the following backends:

Regardless of platform, after transpose_start() returns, both in and out buffers must remain valid and unmodified until transpose_end() completes.

This method transposes data according to the specified transpose_type parameter. Supported options include:

DTFFT_TRANSPOSE_X_TO_Y: Transpose from X to Y
DTFFT_TRANSPOSE_Y_TO_X: Transpose from Y to X
DTFFT_TRANSPOSE_Y_TO_Z: Transpose from Y to Z (valid only for 3D plans)
DTFFT_TRANSPOSE_Z_TO_Y: Transpose from Z to Y (valid only for 3D plans)
DTFFT_TRANSPOSE_X_TO_Z: Transpose from X to Z (valid only for 3D plans using Z-slab)
DTFFT_TRANSPOSE_Z_TO_X: Transpose from Z to X (valid only for 3D plans using Z-slab)

Note

Passing the same pointer to both in and out is not permitted; doing so triggers the error DTFFT_ERROR_INPLACE_TRANSPOSE.

Datatype Backend Version: When the backend is DTFFT_BACKEND_MPI_DATATYPE, calling transpose() executes a single MPI_Ialltoall(w) call followed by MPI_Wait to complete the operation. In contrast, transpose_start() initiates the MPI_Ialltoall(w) call and returns a dtfft_request_t handle that must later be finalized with transpose_end(). In both cases, non-contiguous MPI datatypes are used; once the operation completes, the out buffer contains the transposed data and the in buffer remains unchanged.

Generic Version: Performs a three-step transposition:

Executes a local transposition kernel. On a single process, this completes the task and control returns to the user.
Performs data redistribution using the selected backend.
The final step runs data-unpacking kernel(s) to rearrange received data into the out buffer.

In the Generic version, the in buffer may serve as intermediate storage and its contents may be modified. If you need to preserve in, copy it beforehand.

Example¶

Below is an example of transposing data from X to Y and back:

! Assuming plan is created and buffers `a` and `b` are allocated.
call plan%transpose(a, b, DTFFT_TRANSPOSE_X_TO_Y, error_code)
DTFFT_CHECK(error_code)  ! Checks for errors

! Process Y-aligned data in buffer `b`
! ... (e.g., apply scaling or analysis)

! Reverse transposition
call plan%transpose(b, a, DTFFT_TRANSPOSE_Y_TO_X, error_code)
DTFFT_CHECK(error_code)

! Alternatively, using pointers of type c_ptr
call plan%transpose_ptr(a_ptr, b_ptr, DTFFT_TRANSPOSE_X_TO_Y, error_code)
DTFFT_CHECK(error_code)

! ...

call plan%transpose_ptr(b_ptr, a_ptr, DTFFT_TRANSPOSE_Y_TO_X, error_code)
DTFFT_CHECK(error_code)

// Assuming plan is created and buffers `a` and `b` are allocated.
DTFFT_CALL( dtfft_transpose(plan, a, b, DTFFT_TRANSPOSE_X_TO_Y, NULL) )

// Process Y-aligned data in buffer `b`
// ... (e.g., apply scaling or analysis)

// Reverse transposition
DTFFT_CALL( dtfft_transpose(plan, b, a, DTFFT_TRANSPOSE_Y_TO_X, NULL) )

// Assuming plan is created and buffers `a` and `b` are allocated.
DTFFT_CXX_CALL( plan.transpose(a, b, dtfft::Transpose::X_TO_Y, nullptr) )

// Process Y-aligned data in buffer `b`
// ... (e.g., apply scaling or analysis)

// Reverse transposition
DTFFT_CXX_CALL( plan.transpose(b, a, dtfft::Transpose::Y_TO_X, nullptr) )

Reshape¶

This method redistributes data between brick and pencil decompositions, writing the result into the out buffer. It can be invoked either synchronously via reshape() or as a split-phase operation via reshape_start() followed by reshape_end() (managed via a dtfft_request_t handle).

Note

Reshape operations are available only for plans created with bricks decomposition. Calling reshape() on a plan without reshape support returns DTFFT_ERROR_RESHAPE_NOT_SUPPORTED.

Reshape operations may use a separate backend that is independent of the main transpose backend. The backend type is the same (i.e., dtfft_backend_t), and the set of supported backend values is the same as for transpose. The reshape backend can be configured via reshape_backend in dtfft_config_t or via the environment variable DTFFT_RESHAPE_BACKEND (see Environment Variables). To inspect the selected backends at runtime, use get_backend() (transpose) and get_reshape_backend() (reshape).

The split-phase API is primarily useful for host plans to overlap communication with computation. After reshape_start() returns, both in and out buffers must remain valid and must not be modified until reshape_end() completes.

This method reshapes data according to the specified reshape_type parameter. Supported options include:

DTFFT_RESHAPE_X_BRICKS_TO_PENCILS: Reshape from X-bricks to X-pencils
DTFFT_RESHAPE_X_PENCILS_TO_BRICKS: Reshape from X-pencils to X-bricks
DTFFT_RESHAPE_Z_BRICKS_TO_PENCILS: Reshape from Z-bricks to Z-pencils
DTFFT_RESHAPE_Z_PENCILS_TO_BRICKS: Reshape from Z-pencils to Z-bricks

Inverse pairs are:

DTFFT_RESHAPE_X_BRICKS_TO_PENCILS <-> DTFFT_RESHAPE_X_PENCILS_TO_BRICKS
DTFFT_RESHAPE_Z_BRICKS_TO_PENCILS <-> DTFFT_RESHAPE_Z_PENCILS_TO_BRICKS

For 2D plans, the same idea applies to Y layouts (DTFFT_RESHAPE_Y_BRICKS_TO_PENCILS <-> DTFFT_RESHAPE_Y_PENCILS_TO_BRICKS).

Note

Passing the same pointer to both in and out is not permitted; doing so triggers the error DTFFT_ERROR_INPLACE_RESHAPE.

Note

As with transpose() (Generic version), reshape may use the in buffer as temporary storage and its contents may be modified. If you need to preserve in, copy it beforehand.

Example¶

Below is an example of a full custom 3D FFT workflow using reshape() and transpose() together with an external (1D) FFT implementation. The FFT calls shown are placeholders: use FFTW/MKL/cuFFT/VkFFT (or another library) to execute 1D transforms along the currently aligned dimension.

! Assuming a bricks-decomposition plan is created and buffers `a`, `b` are allocated.
! 1) Bricks -> X-pencils
call plan%reshape(a, b, DTFFT_RESHAPE_X_BRICKS_TO_PENCILS, error_code)
DTFFT_CHECK(error_code)

! 2) 1D FFTs along X on X-pencil layout (external FFT)
! call fft_x_inplace(b)

! 3) X-pencils -> Y-pencils
call plan%transpose(b, a, DTFFT_TRANSPOSE_X_TO_Y, error_code)
DTFFT_CHECK(error_code)

! 4) 1D FFTs along Y on Y-pencil layout (external FFT)
! call fft_y_inplace(a)

! 5) Y-pencils -> Z-pencils
call plan%transpose(a, b, DTFFT_TRANSPOSE_Y_TO_Z, error_code)
DTFFT_CHECK(error_code)

! 6) 1D FFTs along Z on Z-pencil layout (external FFT)
! call fft_z_inplace(b)

! 7) Z-pencils -> bricks (e.g., to continue in brick layout)
call plan%reshape(b, a, DTFFT_RESHAPE_Z_PENCILS_TO_BRICKS, error_code)
DTFFT_CHECK(error_code)

// Assuming a bricks-decomposition plan is created and buffers `a`, `b` are allocated.
// 1) Bricks -> X-pencils
DTFFT_CALL( dtfft_reshape(plan, a, b, DTFFT_RESHAPE_X_BRICKS_TO_PENCILS, NULL) )

// 2) 1D FFTs along X on X-pencil layout (external FFT)
// fft_x_inplace(b);

// 3) X-pencils -> Y-pencils
DTFFT_CALL( dtfft_transpose(plan, b, a, DTFFT_TRANSPOSE_X_TO_Y, NULL) )

// 4) 1D FFTs along Y on Y-pencil layout (external FFT)
// fft_y_inplace(a);

// 5) Y-pencils -> Z-pencils
DTFFT_CALL( dtfft_transpose(plan, a, b, DTFFT_TRANSPOSE_Y_TO_Z, NULL) )

// 6) 1D FFTs along Z on Z-pencil layout (external FFT)
// fft_z_inplace(b);

// 7) Z-pencils -> bricks
DTFFT_CALL( dtfft_reshape(plan, b, a, DTFFT_RESHAPE_Z_PENCILS_TO_BRICKS, NULL) )

// Assuming a bricks-decomposition plan is created and buffers `a`, `b` are allocated.
// 1) Bricks -> X-pencils
DTFFT_CXX_CALL( plan.reshape(a, b, dtfft::Reshape::X_BRICKS_TO_PENCILS, nullptr) )

// 2) 1D FFTs along X on X-pencil layout (external FFT)
// fft_x_inplace(b);

// 3) X-pencils -> Y-pencils
DTFFT_CXX_CALL( plan.transpose(b, a, dtfft::Transpose::X_TO_Y, nullptr) )

// 4) 1D FFTs along Y on Y-pencil layout (external FFT)
// fft_y_inplace(a);

// 5) Y-pencils -> Z-pencils
DTFFT_CXX_CALL( plan.transpose(a, b, dtfft::Transpose::Y_TO_Z, nullptr) )

// 6) 1D FFTs along Z on Z-pencil layout (external FFT)
// fft_z_inplace(b);

// 7) Z-pencils -> bricks
DTFFT_CXX_CALL( plan.reshape(b, a, dtfft::Reshape::Z_PENCILS_TO_BRICKS, nullptr) )

Auxiliary Buffer Size¶

The auxiliary buffer aux is optional for all plan execution functions. If aux is not provided (NULL / not present), dtFFT allocates internal scratch space whenever the selected operation/backend requires it; otherwise, aux is ignored.

If you choose to provide aux yourself, the minimum size depends on the operation:

For execute(): Use get_aux_size() (or get_aux_bytes() for byte size).
For transpose() and reshape(): If the underlying backend is pipelined, allocate at least alloc_size elements from get_local_sizes() (or use get_alloc_bytes() for byte size). For non-pipelined backends, aux is not used for transpose/reshape. To check pipelining, call dtfft_get_backend_pipelined() and pass backends obtained from get_backend() and get_reshape_backend().

Plan properties¶

After creating a plan, several methods are available to inspect its runtime configuration and behavior. These methods, defined in dtfft_plan_t, provide valuable insights into the plan’s setup and are particularly useful for debugging or integrating with custom workflows. The following methods are supported:

get_z_slab_enabled(): Returns a logical value indicating whether Z-slab optimization is active in the plan.
get_y_slab_enabled(): Returns a logical value indicating whether Y-slab optimization is active in the plan.
get_backend(): Retrieves the backend selected during plan creation.
get_reshape_backend(): Retrieves the backend used for reshape operations.
get_stream(): Returns the CUDA stream associated with the plan. The stream is either internally created and managed by dtFFT, or a custom one provided by the user via dtfft_config_t (see Setting Additional Configurations).

Available only in CUDA-enabled builds, it enables integration with existing CUDA workflows by exposing the stream used for GPU operations.
report(): Prints detailed plan information to stdout, including grid decomposition and backend selection. This diagnostic tool aids in understanding the plan’s configuration and troubleshooting unexpected behavior.
get_executor(): Returns the executor type used for FFT computations within the plan.
get_precision(): Returns the numerical precision (DTFFT_SINGLE or DTFFT_DOUBLE) of the plan.
get_dims(): Returns global dimensions of the plan. This can be useful for validating the plan’s setup against expected sizes.
get_grid_dims(): Returns the grid decomposition dimensions used in the plan, reflecting how the global domain is partitioned across MPI ranks.
get_platform(): Returns the execution platform (DTFFT_PLATFORM_HOST or DTFFT_PLATFORM_CUDA) of the plan.

Available only in CUDA-enabled builds

These methods provide a window into the plan’s internal state, allowing users to validate settings or gather diagnostics post-creation. They remain accessible until the plan is destroyed with destroy(). For detailed usage, refer to the Fortran, C, and C++ API documentation.

Plan Finalization¶

To fully release all memory resources allocated by dtFFT for a plan, the plan must be explicitly destroyed. This ensures that all internal buffers and resources associated with the plan are freed.

Note

If buffers were allocated using mem_alloc(), they must be deallocated with mem_free() before destroying the plan. Failing to do so may result in memory leaks or undefined behavior.

Example¶

Below is an example of properly finalizing a plan and freeing allocated memory:

! Assuming a plan and buffers ``a``, ``b`` and ``aux`` are created and allocated with ``mem_alloc``
call plan%mem_free(a, error_code);   DTFFT_CHECK(error_code)
call plan%mem_free(b, error_code);   DTFFT_CHECK(error_code)
call plan%mem_free(aux, error_code); DTFFT_CHECK(error_code)

! Pointers allocated via mem_alloc_ptr must be freed with ``mem_free_ptr``
call plan%mem_free_ptr(a_ptr, error_code);   DTFFT_CHECK(error_code)
call plan%mem_free_ptr(b_ptr, error_code);   DTFFT_CHECK(error_code)
call plan%mem_free_ptr(aux_ptr, error_code); DTFFT_CHECK(error_code)

call plan%destroy(error_code)            ! Destroy the plan
DTFFT_CHECK(error_code)

// Assuming a plan and buffers ``a``, ``b`` and ``aux`` are created and allocated with `dtfft_mem_alloc`
DTFFT_CALL( dtfft_mem_free(plan, a) )   // Free buffer ``a``
DTFFT_CALL( dtfft_mem_free(plan, b) )   // Free buffer ``b``
DTFFT_CALL( dtfft_mem_free(plan, aux) ) // Free buffer ``aux``
DTFFT_CALL( dtfft_destroy(&plan) )      // Destroy the plan

// Assuming a plan and buffers ``a``, ``b`` and ``aux`` are created and allocated with `mem_alloc`
DTFFT_CXX_CALL( plan.mem_free(a) )    // Free buffer ``a``
DTFFT_CXX_CALL( plan.mem_free(b) )    // Free buffer ``b``
DTFFT_CXX_CALL( plan.mem_free(aux) )  // Free buffer ``aux``
DTFFT_CXX_CALL( plan.destroy() )      // Explicitly destroy the plan (optional if using destructor)
                                      // Automatic ~Plan() call when `plan` goes out of scope

Complete Example¶

The following example demonstrates the full lifecycle of a dtFFT complex-to-complex plan: creating a plan, allocating memory, executing forward and backward transformations, and properly finalizing resources.

program dtfft_sample
#include "dtfft.f03"
use iso_fortran_env
use dtfft
use mpi ! or use mpi_f08
use iso_c_binding
implicit none
  type(dtfft_plan_c2c_t) :: plan
  type(dtfft_config_t) :: config
  integer(int32) :: dims(3) = [64, 64, 64]  ! Example dimensions
  integer(int32) :: error_code
  integer(int64) :: alloc_size, element_size, alloc_bytes, aux_size
  complex(real64), pointer :: a(:), b(:), aux(:)

  call MPI_Init(error_code)

  ! Create dtfft_config_t object with default values
  config = dtfft_config_t()

  ! Disable Z-slab
  config%enable_z_slab = .false.

  ! Apply configuration to dtFFT
  call dtfft_set_config(config, error_code)
  DTFFT_CHECK(error_code)

  ! Create plan
  call plan%create(dims, MPI_COMM_WORLD, DTFFT_DOUBLE, DTFFT_PATIENT, DTFFT_EXECUTOR_NONE, error_code)
  DTFFT_CHECK(error_code)

  ! Obtain allocation sizes
  alloc_size = plan%get_alloc_size(error_code); DTFFT_CHECK(error_code)
  aux_size = plan%get_aux_size(error_code);     DTFFT_CHECK(error_code)

  ! Allocate memory
  call plan%mem_alloc(alloc_size, a, error_code); DTFFT_CHECK(error_code)
  call plan%mem_alloc(alloc_size, b, error_code); DTFFT_CHECK(error_code)
  call plan%mem_alloc(aux_size, aux, error_code); DTFFT_CHECK(error_code)

  ! Forward execution
  call plan%execute(a, b, DTFFT_EXECUTE_FORWARD, aux, error_code)
  DTFFT_CHECK(error_code)

  ! Process Fourier-space data in buffer `b` (e.g., apply filtering)
  ! ...

  ! Backward execution
  call plan%execute(b, a, DTFFT_EXECUTE_BACKWARD, aux, error_code)
  DTFFT_CHECK(error_code)

  ! Free memory
  call plan%mem_free(a, error_code); DTFFT_CHECK(error_code)
  call plan%mem_free(b, error_code); DTFFT_CHECK(error_code)
  call plan%mem_free(aux, error_code); DTFFT_CHECK(error_code)

  ! Destroy the plan
  call plan%destroy(error_code)
  DTFFT_CHECK(error_code)

  call MPI_Finalize(error_code)
end program dtfft_sample

#include <dtfft.h>
#include <mpi.h>

int main(int argc, char *argv[])
{
  dtfft_plan_t plan;
  dtfft_complex *a, *b, *aux;  // Use dtfft_complex from dtfft.h
  int32_t dims[3] = {64, 64, 64};  // Example dimensions
  size_t alloc_size, aux_size;

  MPI_Init(&argc, &argv);

  dtfft_config_t config;
  // Set default values to config
  dtfft_create_config(&config);
  // Disable Z-slab
  config.enable_z_slab = 0;

  // Apply configuration to dtFFT
  DTFFT_CALL( dtfft_set_config(&config) );

  // Create plan
  DTFFT_CALL( dtfft_create_plan_c2c(3, dims, MPI_COMM_WORLD, DTFFT_DOUBLE, DTFFT_PATIENT, DTFFT_EXECUTOR_NONE, &plan) );

  // Obtain allocation size
  DTFFT_CALL( dtfft_get_alloc_size(plan, &alloc_size) );
  DTFFT_CALL( dtfft_get_aux_size(plan, &aux_size) );

  // Allocate memory
  DTFFT_CALL( dtfft_mem_alloc(plan, sizeof(dtfft_complex) * alloc_size, (void**)&a) );
  DTFFT_CALL( dtfft_mem_alloc(plan, sizeof(dtfft_complex) * alloc_size, (void**)&b) );
  DTFFT_CALL( dtfft_mem_alloc(plan, sizeof(dtfft_complex) * aux_size, (void**)&aux) );

  // Forward execution
  DTFFT_CALL( dtfft_execute(plan, a, b, DTFFT_EXECUTE_FORWARD, aux) );

  // Process Fourier-space data in buffer `b` (e.g., apply filtering)
  // ...

  // Backward execution
  DTFFT_CALL( dtfft_execute(plan, b, a, DTFFT_EXECUTE_BACKWARD, aux) );

  // Free memory
  DTFFT_CALL( dtfft_mem_free(plan, a) );
  DTFFT_CALL( dtfft_mem_free(plan, b) );
  DTFFT_CALL( dtfft_mem_free(plan, aux) );

  // Destroy the plan
  DTFFT_CALL( dtfft_destroy(&plan) );

  MPI_Finalize();
  return 0;
}

#include <dtfft.hpp>
#include <mpi.h>
#include <complex>
#include <vector>

using namespace dtfft;

int main(int argc, char *argv[])
{
  MPI_Init(&argc, &argv);

  std::vector<int32_t> dims = {64, 64, 64};  // Example dimensions

  // Set default values to config
  Config config;
  config.set_enable_z_slab(false);

  // Apply configuration to dtFFT
  DTFFT_CXX_CALL( set_config(config) );

  // Create plan
  PlanC2C plan(dims, MPI_COMM_WORLD, Precision::DOUBLE, Effort::PATIENT, Executor::NONE);

  size_t alloc_size, element_size;
  DTFFT_CXX_CALL( plan.get_alloc_size(&alloc_size) );
  DTFFT_CXX_CALL( plan.get_element_size(&element_size) );
  size_t aux_size = plan.get_aux_size();

  size_t alloc_bytes = alloc_size * element_size;
  std::complex<double> *a, *b, *aux;

  // Allocate memory
  DTFFT_CXX_CALL( plan.mem_alloc(alloc_bytes, (void**)&a) );
  DTFFT_CXX_CALL( plan.mem_alloc(alloc_bytes, (void**)&b) );
  DTFFT_CXX_CALL( plan.mem_alloc(aux_size * element_size, (void**)&aux) );

  // Forward execution
  DTFFT_CXX_CALL( plan.execute(a, b, Execute::FORWARD, aux) );

  // Process Fourier-space data in buffer `b` (e.g., apply filtering)
  // ...

  // Backward execution
  DTFFT_CXX_CALL( plan.execute(b, a, Execute::BACKWARD, aux) );

  // Free memory
  DTFFT_CXX_CALL( plan.mem_free(a) );
  DTFFT_CXX_CALL( plan.mem_free(b) );
  DTFFT_CXX_CALL( plan.mem_free(aux) );

  // Explicitly destroy the plan
  DTFFT_CXX_CALL( plan.destroy() );

  MPI_Finalize();
  return 0;
}
